Correlation: The High-Value Skill

You record a test. It works once. You play it back and everything fails with 403 errors. Why?

Modern web applications use dynamic tokens, session IDs, and generated identifiers. Every response contains values that must be captured and sent back in the next request. This is correlation - and it's what separates working tests from useless recordings.

Why Correlation Matters

Consider a typical e-commerce checkout:

Request 1: Login
Response:  Set-Cookie: SESSION=abc123; CSRF_TOKEN in body

Request 2: Add to Cart
Required:  Cookie: SESSION=abc123
           Header: X-CSRF-TOKEN: xyz789

Request 3: Checkout
Required:  Cookie: SESSION=abc123
           Body: cart_id=cart_456 (generated in Request 2)

Without correlation, your second playback sends:

• Old session cookie (rejected - session expired)
• Old CSRF token (rejected - token mismatch)
• Old cart ID (rejected - cart doesn't exist)

What Needs Correlation?

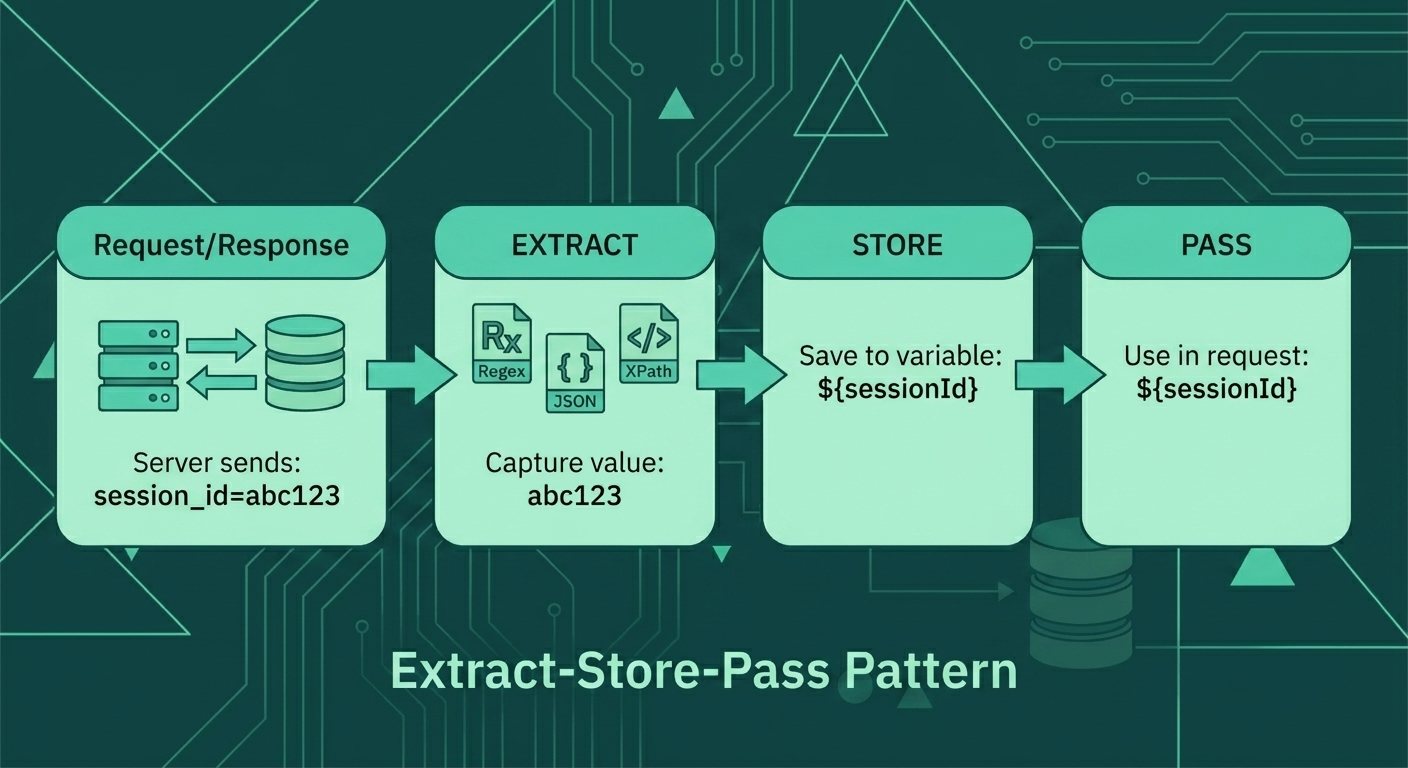

The Extract-Store-Pass Pattern

Every correlation follows this pattern:

The flow works like this: Extract dynamic values from the server response using Regex, JSON, or XPath extractors, store them in JMeter variables, then pass those variables to subsequent requests.

Regular Expression Extractor

The most versatile extractor. Works with any text response.

Basic Syntax

Response: "Your order ID is ORD-12345. Thank you!"

Regex: order ID is (ORD-\d+)
       └─────────┬─────────┘
                 │
         Capturing group $1$

JMeter Configuration

<RegexExtractor guiclass="RegexExtractorGui" testclass="RegexExtractor"
                testname="Extract Order ID">
  <stringProp name="RegexExtractor.useHeaders">false</stringProp>
  <stringProp name="RegexExtractor.refname">orderId</stringProp>
  <stringProp name="RegexExtractor.regex">order ID is (ORD-\d+)</stringProp>
  <stringProp name="RegexExtractor.template">$1___CODEBLOCK_2___lt;/stringProp>
  <stringProp name="RegexExtractor.default">NOT_FOUND</stringProp>
  <stringProp name="RegexExtractor.match_number">1</stringProp>
</RegexExtractor>

Using the Extracted Value

<HTTPSamplerProxy testname="Get Order Details">
  <stringProp name="HTTPSampler.path">/api/orders/${orderId}</stringProp>
</HTTPSamplerProxy>

JSON Extractor

For JSON API responses, JSON Extractor is cleaner and more maintainable.

JSON Response Example

{
  "cart": {
    "id": "cart_abc123",
    "items": [
      {"productId": "prod_001", "quantity": 2},
      {"productId": "prod_002", "quantity": 1}
    ],
    "csrfToken": "csrf_xyz789"
  }
}

JSON Path Expressions

$.cart.id           → "cart_abc123"
$.cart.csrfToken    → "csrf_xyz789"
$.cart.items[0].productId → "prod_001"
$.cart.items[*].productId → ["prod_001", "prod_002"]

JMeter Configuration

<JSONPostProcessor guiclass="JSONPostProcessorGui" testclass="JSONPostProcessor"
                   testname="Extract Cart Data">
  <stringProp name="JSONPostProcessor.referenceNames">cartId;csrfToken</stringProp>
  <stringProp name="JSONPostProcessor.jsonPathExprs">$.cart.id;$.cart.csrfToken</stringProp>
  <stringProp name="JSONPostProcessor.match_numbers">1;1</stringProp>
  <stringProp name="JSONPostProcessor.defaultValues">NOT_FOUND;NOT_FOUND</stringProp>
</JSONPostProcessor>

This extracts multiple values at once:

• ${cartId} = "cart_abc123"
• ${csrfToken} = "csrf_xyz789"

XPath Extractor

For HTML or XML responses where you need to extract from the DOM structure.

HTML Response Example

<form action="/checkout" method="POST">
  <input type="hidden" name="_csrf" value="csrf_xyz789" />
  <input type="hidden" name="cartId" value="cart_abc123" />
  <button type="submit">Complete Purchase</button>
</form>

XPath Expressions

//input[@name='_csrf']/@value    → "csrf_xyz789"
//input[@name='cartId']/@value   → "cart_abc123"

JMeter Configuration

<XPathExtractor guiclass="XPathExtractorGui" testclass="XPathExtractor"
                testname="Extract CSRF from Form">
  <stringProp name="XPathExtractor.refname">csrfToken</stringProp>
  <stringProp name="XPathExtractor.xpathQuery">//input[@name='_csrf']/@value</stringProp>
  <stringProp name="XPathExtractor.default">NOT_FOUND</stringProp>
  <stringProp name="XPathExtractor.matchNumber">1</stringProp>
</XPathExtractor>

E-commerce Correlation Example

Let's build a complete cart flow with proper correlation.

Step 1: Login and Extract Session

<HTTPSamplerProxy testname="Login">
  <stringProp name="HTTPSampler.path">/api/auth/login</stringProp>
  <stringProp name="HTTPSampler.method">POST</stringProp>
  <boolProp name="HTTPSampler.postBodyRaw">true</boolProp>
  <stringProp name="Argument.value">{"email":"${email}","password":"${password}"}</stringProp>
</HTTPSamplerProxy>

Response:

{
  "user": {"id": "user_123", "name": "John"},
  "token": "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9...",
  "csrfToken": "csrf_abc123"
}

Extractor:

<JSONPostProcessor testname="Extract Auth Tokens">
  <stringProp name="JSONPostProcessor.referenceNames">authToken;csrfToken;userId</stringProp>
  <stringProp name="JSONPostProcessor.jsonPathExprs">$.token;$.csrfToken;$.user.id</stringProp>
  <stringProp name="JSONPostProcessor.defaultValues">NOT_FOUND;NOT_FOUND;NOT_FOUND</stringProp>
</JSONPostProcessor>

Step 2: Add to Cart with Tokens

<HTTPSamplerProxy testname="Add to Cart">
  <stringProp name="HTTPSampler.path">/api/cart/items</stringProp>
  <stringProp name="HTTPSampler.method">POST</stringProp>
  <boolProp name="HTTPSampler.postBodyRaw">true</boolProp>
  <stringProp name="Argument.value">{"productId":"${productId}","quantity":1}</stringProp>
</HTTPSamplerProxy>

<HeaderManager testname="Auth Headers">
  <collectionProp name="HeaderManager.headers">
    <elementProp name="Authorization" elementType="Header">
      <stringProp name="Header.name">Authorization</stringProp>
      <stringProp name="Header.value">Bearer ${authToken}</stringProp>
    </elementProp>
    <elementProp name="X-CSRF-Token" elementType="Header">
      <stringProp name="Header.name">X-CSRF-Token</stringProp>
      <stringProp name="Header.value">${csrfToken}</stringProp>
    </elementProp>
  </collectionProp>
</HeaderManager>

Response:

{
  "cartId": "cart_789",
  "items": [{"productId": "prod_001", "quantity": 1}],
  "total": 29.99
}

Extractor:

<JSONPostProcessor testname="Extract Cart ID">
  <stringProp name="JSONPostProcessor.referenceNames">cartId</stringProp>
  <stringProp name="JSONPostProcessor.jsonPathExprs">$.cartId</stringProp>
  <stringProp name="JSONPostProcessor.defaultValues">NOT_FOUND</stringProp>
</JSONPostProcessor>

Step 3: Checkout with Cart ID

<HTTPSamplerProxy testname="Checkout">
  <stringProp name="HTTPSampler.path">/api/checkout</stringProp>
  <stringProp name="HTTPSampler.method">POST</stringProp>
  <boolProp name="HTTPSampler.postBodyRaw">true</boolProp>
  <stringProp name="Argument.value">{
    "cartId": "${cartId}",
    "paymentMethod": "credit_card",
    "shippingAddress": "${addressId}"
  }</stringProp>
</HTTPSamplerProxy>

Debugging Correlation

Use Debug Sampler

Add a Debug Sampler after your extractor to see all variables:

<DebugSampler guiclass="TestBeanGUI" testclass="DebugSampler"
              testname="Debug Sampler">
  <boolProp name="displayJMeterProperties">false</boolProp>
  <boolProp name="displayJMeterVariables">true</boolProp>
  <boolProp name="displaySystemProperties">false</boolProp>
</DebugSampler>

Output shows:

authToken=eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9...
cartId=cart_789
csrfToken=csrf_abc123
userId=user_123

Check with View Results Tree

In the View Results Tree listener, look at:

• Request tab - verify variables were substituted
• Response tab - find the values you need to extract
• Debug Sampler response - see all stored variables

Advanced: JSR223 PostProcessor

For complex extraction logic, use Groovy scripting:

import groovy.json.JsonSlurper

// Parse the response
def response = prev.getResponseDataAsString()
def json = new JsonSlurper().parseText(response)

// Extract and transform
def cartId = json.cart?.id ?: "NOT_FOUND"
def itemCount = json.cart?.items?.size() ?: 0

// Store as JMeter variables
vars.put("cartId", cartId)
vars.put("itemCount", itemCount.toString())

// Conditional extraction
if (json.cart?.discount) {
    vars.put("discountCode", json.cart.discount.code)
    vars.put("discountAmount", json.cart.discount.amount.toString())
}

log.info("Extracted cartId: ${cartId}, items: ${itemCount}")

<JSR223PostProcessor guiclass="TestBeanGUI" testclass="JSR223PostProcessor"
                     testname="Complex Extraction">
  <stringProp name="scriptLanguage">groovy</stringProp>
  <stringProp name="script">/* Groovy code above */</stringProp>
</JSR223PostProcessor>

Common Correlation Patterns

Pattern: Refresh CSRF Token

Some apps regenerate CSRF tokens on every response:

<!-- Add after EVERY request that returns a new token -->
<RegexExtractor testname="Refresh CSRF">
  <stringProp name="RegexExtractor.refname">csrfToken</stringProp>
  <stringProp name="RegexExtractor.regex">name="_csrf" value="([^"]+)"</stringProp>
  <stringProp name="RegexExtractor.template">$1___CODEBLOCK_21___lt;/stringProp>
  <stringProp name="RegexExtractor.default">${csrfToken}</stringProp>
</RegexExtractor>

The default ${csrfToken} keeps the old value if no new token is found.

Pattern: Extract from Set-Cookie Header

<RegexExtractor testname="Extract Session Cookie">
  <stringProp name="RegexExtractor.useHeaders">true</stringProp>
  <stringProp name="RegexExtractor.refname">sessionId</stringProp>
  <stringProp name="RegexExtractor.regex">SESSION=([^;]+)</stringProp>
  <stringProp name="RegexExtractor.template">$1___CODEBLOCK_22___lt;/stringProp>
</RegexExtractor>

Note: useHeaders=true searches response headers instead of body.

Key Takeaways

Next Lesson

You can now handle dynamic values. But what about testing with different users, products, and scenarios? Next, we'll cover Parameterization - using CSV files and variables to create data-driven tests.
